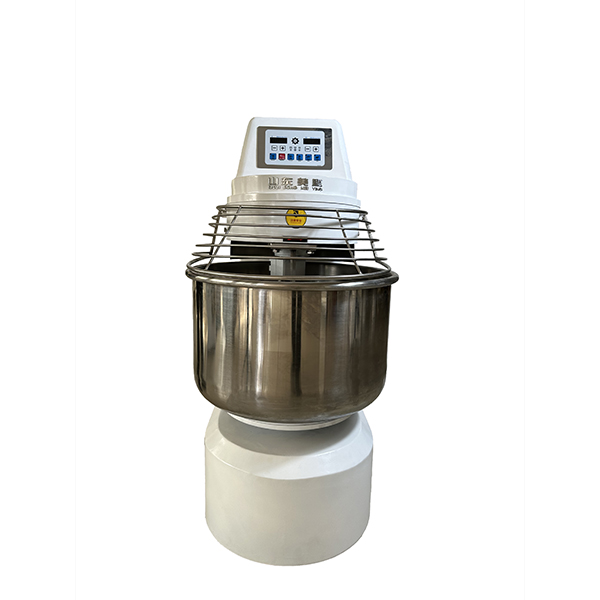

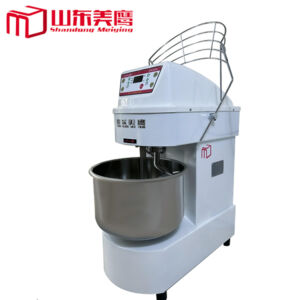

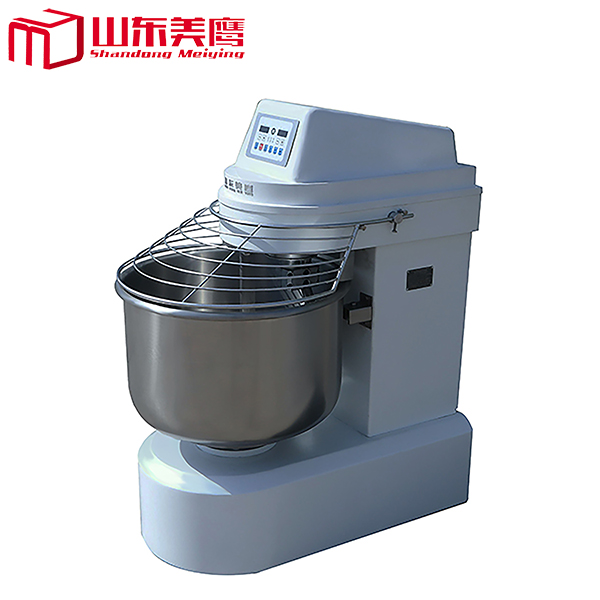

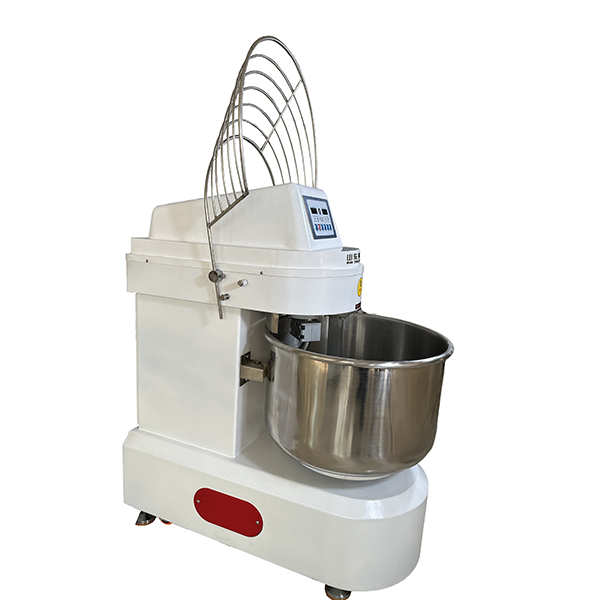

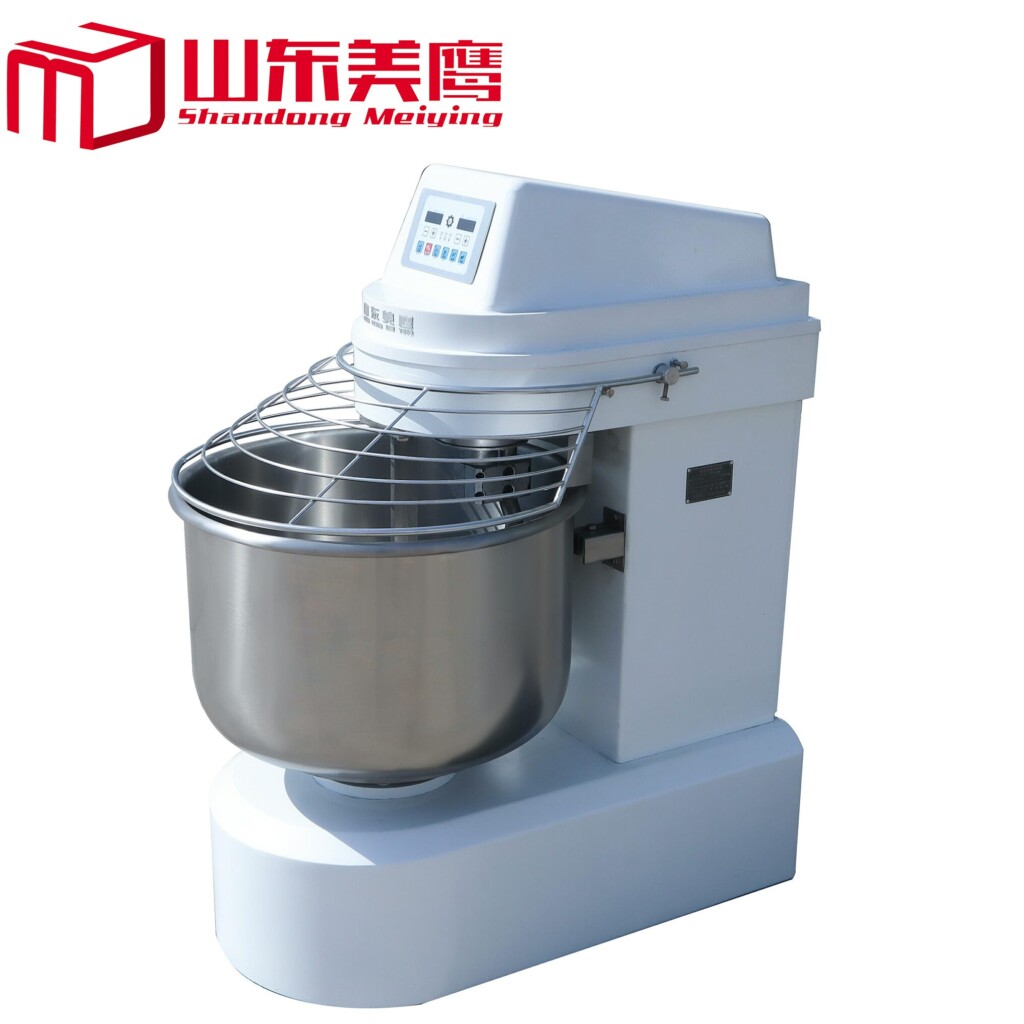

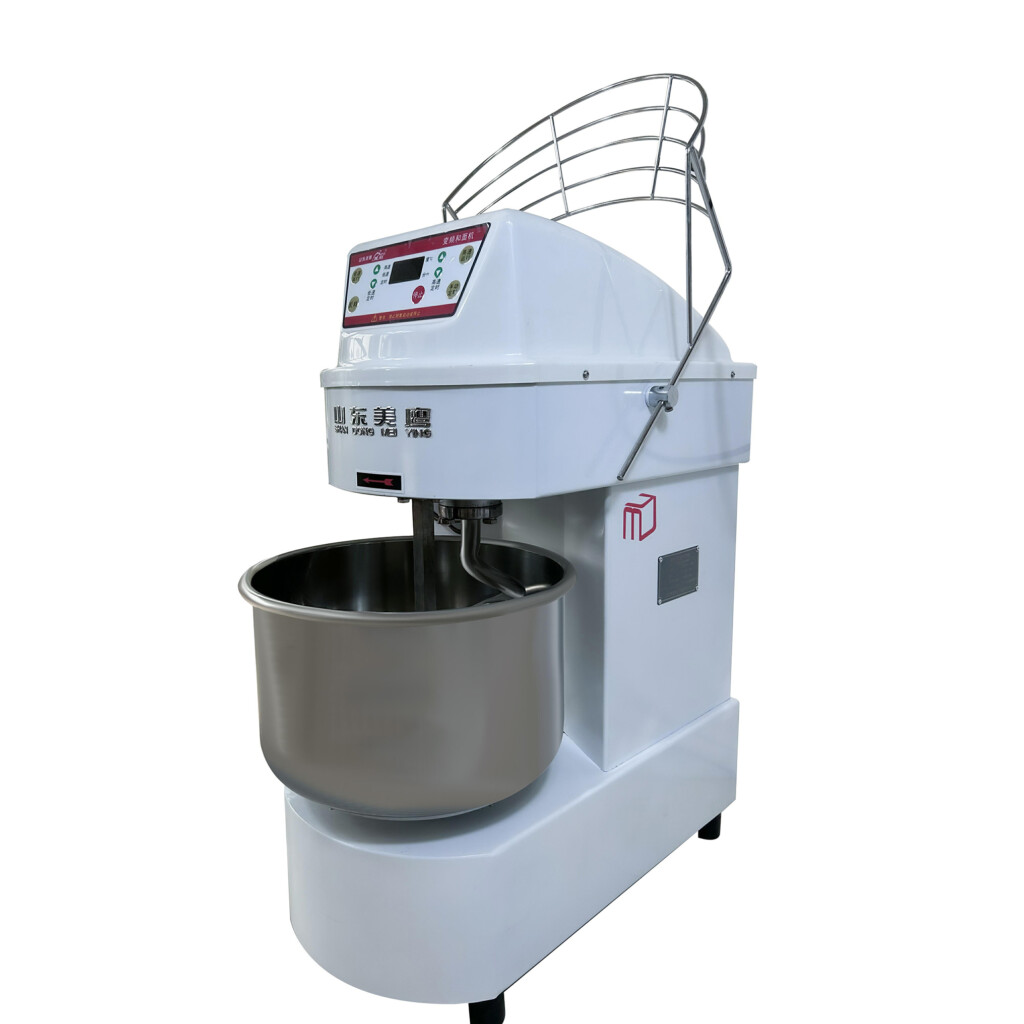

Features:
- Digital control, Solid construction.
- The computer board is used to control the polarization two-speed motor to achieve high and low speed conversion.
- The barrel is dragged by a separate electric motor and can be selected autonomouslyforward and reverse;

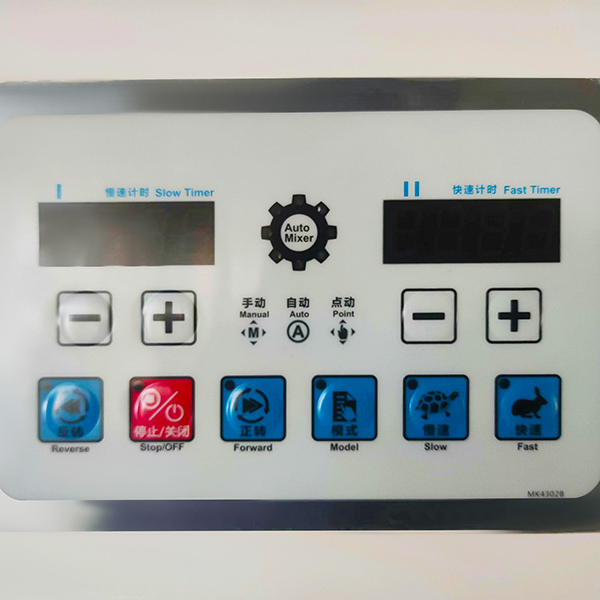

- There are three modes: jog, manual, and automatic, which can be switched and stopped at regular intervals.

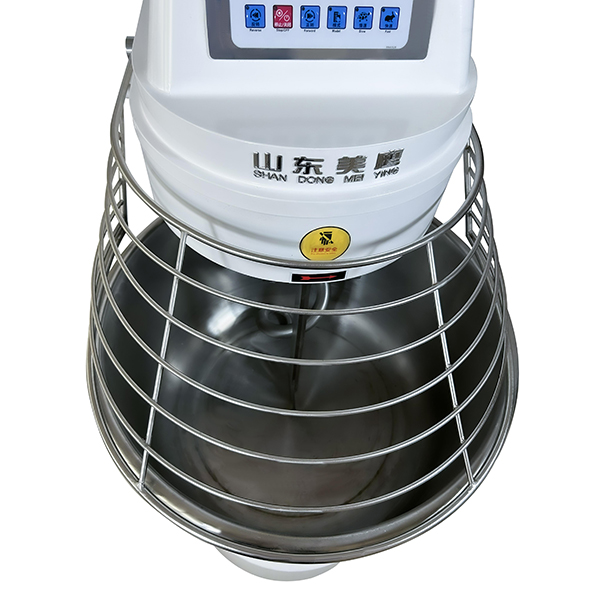

- Stainless steel hooks and bowls.
Products Size:
Model | MHS40 | MHS60 | MHS120 |
Capacity(kg) | 15 | 25 | 50 |
Bucket capacity(L) | 40 | 60 | 120 |
Power(kw) | 2.2 | 1.5/2. 4+0.55 | 3/4.5+ 0.55 |
Voltage(v) | 220-240 V/1N ph/50 Hz | 380 V/3N ph/50 Hz | 380 V/3N ph/50 Hz |
Spiral Speed(rpm) 1st | 145 | 135 | 135 |
Spiral Speed(rpm)2nd | 290 | 270 | 270 |
Bowl Speed(rpm)1st | 15 | 15 | 15 |
Bowl Speed(rpm)2nd | 30 | 24 | 24 |
Weight(kg) | 150 | 280 | 430 |
Dimension(mm)(W*D*H) | 880X485X1060 | 1000X580X1200 | 1060X680X1380 |
